Adhesives
Adhesives
Manufactured Products

Adhesives For Fiber Fixing
(AT8105, AT9575M)

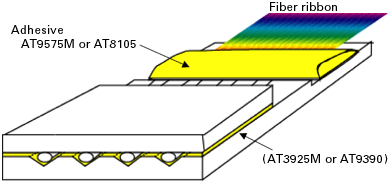

Fig. Typical Fiber Array

Main properties for fixing optical fiber
(AT8105 (Acrylate), AT9575M (Epoxy) )

Name (Main Components)



AT8105 (Acrylate)



AT9575M (Epoxy)

Conditions

External appearance



Light amber



Light amber

Viscosity (cP)



>20,000 (Paste)
[25]



>27,000 (Paste)
[25]

Curing

Curing Time (min)



5 *1



10 *2

Shrinkage during curing (%)



6



4

Properties after curing

Glass Transition Temperature ()



99



34

Modulus ( dyn/cm2) [25]



-



5.1 / 0.43

Optical transmittance (%)
[ = 1.3m, 1mm]



-



62

Thermal expansion coefficient
( )



-



8~9

Adhesion Strength
(kgf/cm2)[Glass]



>200



>146


(Note)
This property data is a measured value on samples instead of the guaranteed value.
Recommended curing process :

*1 UV irradiation : 10mW/cm2 (365nm) Heat treatment : 50 ~ 60 for 30 ~ 60min
*2 UV irradiation : 30mW/cm2 (365nm) Heat treatment : 100 for 2h
